Positive torque transfer
Four flat faces engage the mating bore or sleeve without treating the shaft as generic stock.

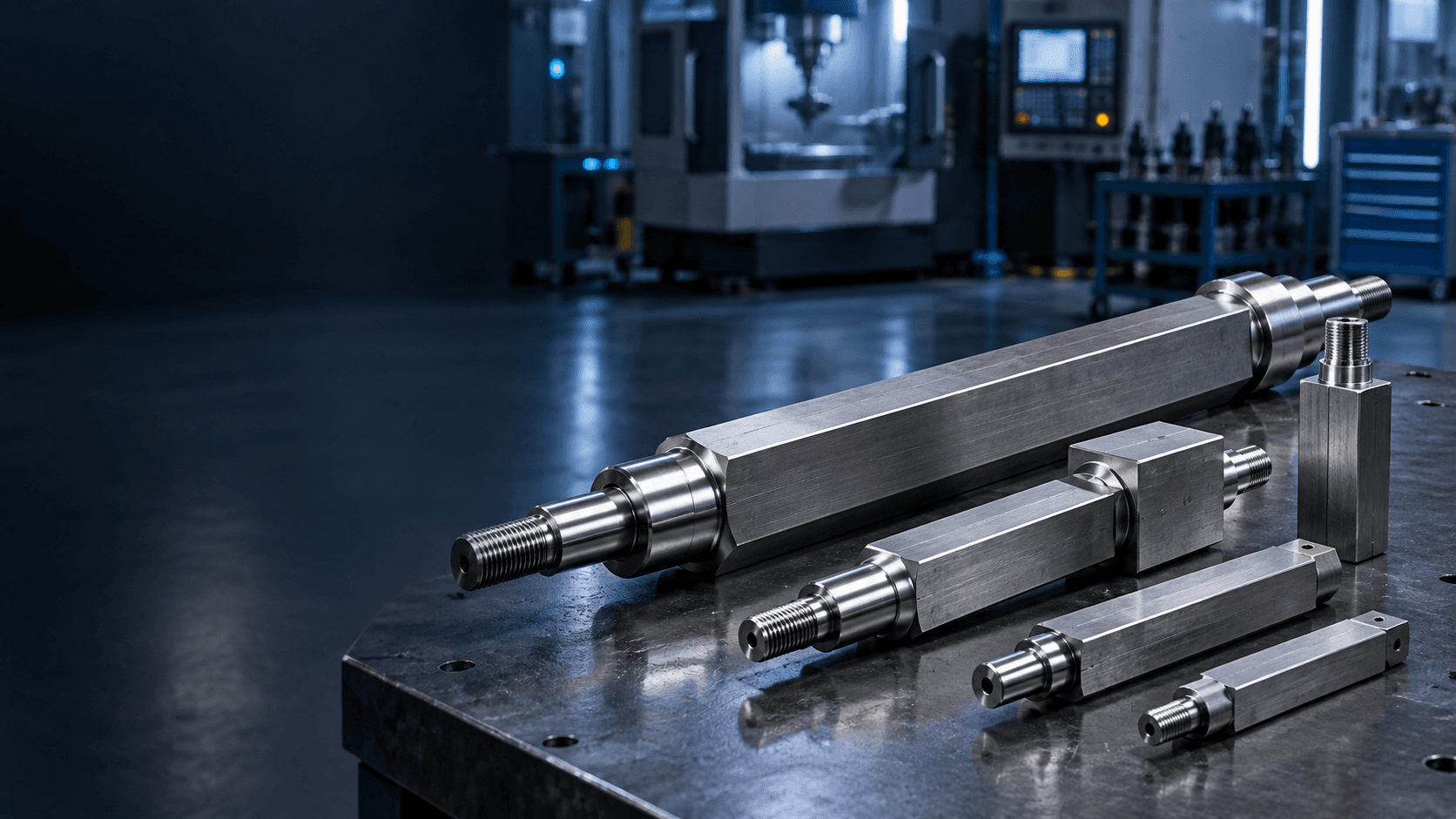

CUSTOM SQUARE SHAFT MANUFACTURER
Positive Torque.
Controlled Geometry.
Built To Your Drawing.
Custom square and rectangular shafts made around profile fit, twist, bearing journals and application-specific end features.
Topshaft manufactures square drive shafts for conveyors, telescoping drives, industrial machinery, agricultural equipment and engineered OEM assemblies.
Across-flats dimensions, corner condition, straightness, twist, round-journal fit, heat treatment and torque-transfer geometry are reviewed as one functional system.
STEP, STP, IGES, X_T, DWG, DXF and PDF drawings can be reviewed.SQUARE SHAFT CAPABILITY SNAPSHOT
Control The Faces That Carry Torque.
Achievable geometry depends on the material, across-flats size, section length, starting form, end features, heat-treatment route and inspection requirements.
- Product type
- Custom square shafts, rectangular shafts and square drive shafts
- Profile control
- Across flats, opposite-face parallelism, perpendicularity, corner condition and twist
- Geometry
- Square center sections, round bearing journals, shoulders, bores, flanges and stepped ends
- Materials
- Carbon steel, alloy steel, stainless steel, aluminum and drawing-specified material
- End features
- Threads, keyways, grooves, cross holes, tapped holes, flats and coupling interfaces
- Precision
- Across-flats tolerance, straightness, twist, journal runout and square-to-journal relation
- Heat treatment
- Q&T, induction hardening, carburizing or drawing-defined condition
- Production
- Prototypes, replacement parts, low-volume and repeat OEM production
WHAT IS A SQUARE SHAFT?
A Torque-Transmitting Profile, Not Just Square Bar.
A square shaft has four controlled flat faces that engage a matching square bore, sleeve, hub or sprocket. The profile can transfer torque through direct face contact while maintaining angular orientation along the assembly.
A finished square shaft differs from ordinary square bar because it is built around across-flats fit, corner condition, straightness, twist, bearing support and drawing-defined end geometry. It can combine a square center section with round journals, shoulders, threads, grooves, bores or coupling interfaces.
WHY USE A SQUARE SHAFT?
Direct Face Engagement For Torque And Orientation.
Round shafts commonly need a key, spline, clamp or other torque-transfer feature. A square profile can engage a square bore directly, but it must be specified around fit, corners, twist and the actual load path.
Angular orientation
The profile preserves rotational orientation for sprockets, sliding drives and guided assemblies.
Square-to-round construction
Round journals can provide conventional bearing interfaces while the square section carries torque.
Telescoping potential
Inner and outer square profiles can create axial sliding engagement when clearance and lubrication are controlled.
Conveyor integration
Square-bore sprockets and driver components can be located directly on the torque-carrying section.
Drawing-defined features
Threads, grooves, cross holes, flanges and machined ends can be coordinated around the profile.
Across flats + corner condition + twist + straightness + journal relation + surface condition β reliable square-shaft engagement.
FUNCTIONAL GEOMETRY
Specify Across Flats, Corner Condition And Twist.
The square size alone does not fully define the component. The mating interface also depends on face relationship, corner relief, angular orientation and how the square section relates to journals or other datums.
Critical characteristicWhat it controlsWhy it matters
Across flatsSize between opposite facesFit with square bores, sleeves and hubs.
Opposite-face parallelismConsistency of section sizeUniform face contact and sliding engagement.
Adjacent-face perpendicularitySquare geometryCorrect profile orientation and mating-part engagement.
Corner radius / chamferCorner clearanceAvoids interference with internal bore corners.
TwistAngular orientation along lengthSprocket alignment, telescoping fit and assembly orientation.
Round journal runoutRotation relative to datumBearing behavior and rotating-system accuracy.
Square-to-journal locationDrive-to-bearing alignmentMaintains functional geometry across mixed sections.
SQUARE SHAFT VS. ROUND, BAR AND SPLINE
Choose The Profile Around The Assembly.
Square shaft vs. round shaft
A square profile can transfer torque by face contact; a round shaft generally needs another torque-transfer feature.
Square shaft vs. square bar
Square bar is stock. A shaft is a finished mechanical component with controlled geometry and functional interfaces.
Square shaft vs. spline shaft
Splines may provide higher tooth-count engagement or frequent sliding requirements; square profiles can be simpler for suitable torque and fit conditions.

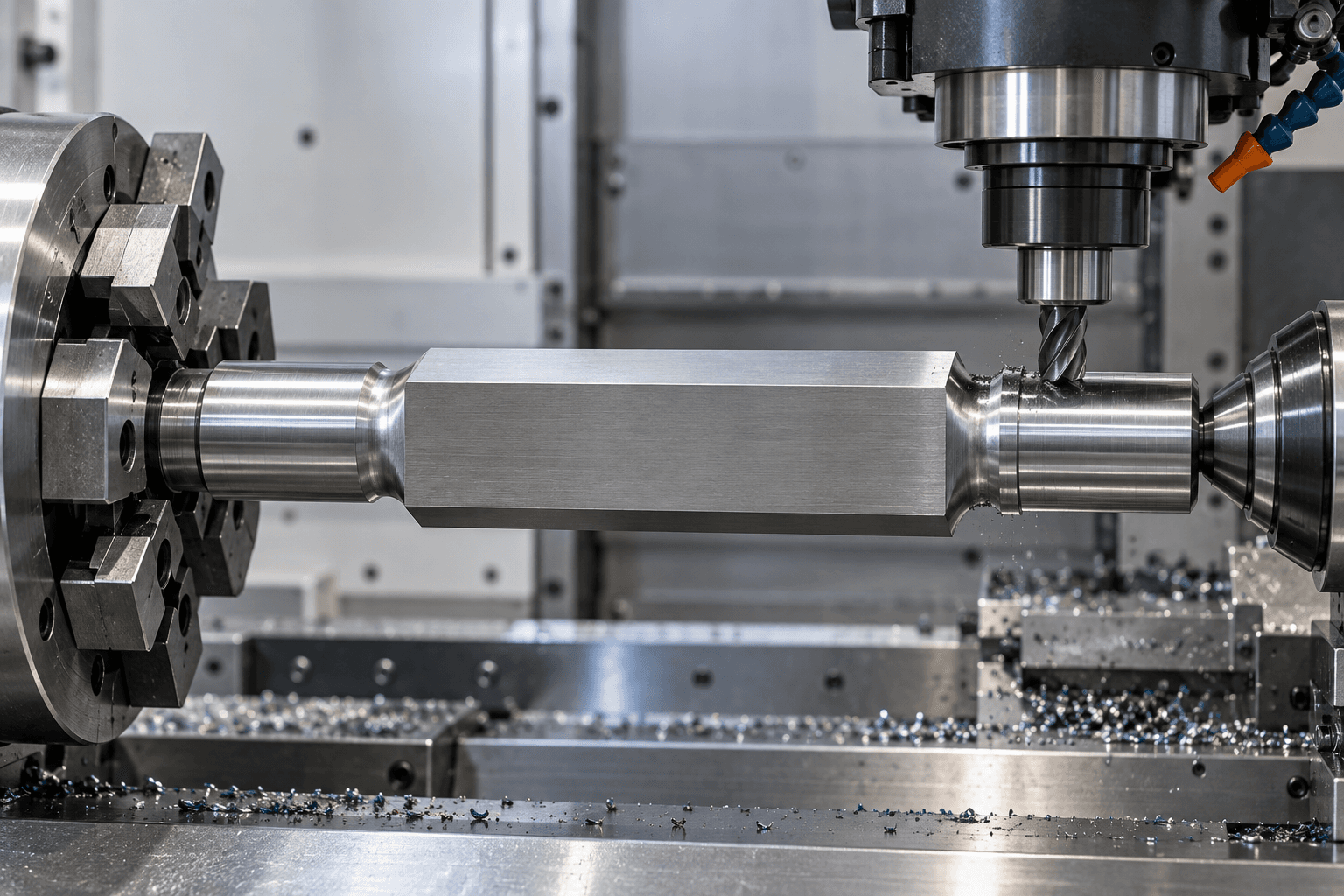

Square-to-round shaft
A common architecture: square torque section where drive is needed, round journals where bearings are needed.
MATERIALS & HEAT TREATMENT
Set Strength, Wear And Final Geometry Together.
1045/C45 and 4140/42CrMo are common directions where strength and heat-treatment response matter. Stainless options can suit corrosion-sensitive systems; aluminum can suit lower-load lightweight mechanisms.
Heat treatment can change straightness and twist. When geometry is critical, the route should identify whether final machining or grinding happens after treatment and which surfaces require hardness.
Q&T for stronger alloy-steel sections
Localized induction hardening where wear occurs
Carburizing only where material and function justify it
Final geometry verified after heat treatment
HOW SQUARE SHAFTS ARE MANUFACTURED
Plan The Profile, Drive Features And Bearing Interfaces Together.
The starting route can be cold-drawn square stock, controlled bar, a forged blank or a machined profile. The final route is driven by the drawing rather than a generic process list.
- 01Drawing reviewConfirm the functional square profile, torque path, bearing support and mating interface.
- 02Material preparationSelect square stock, rectangular stock, forged blank or another approved starting form.
- 03Profile productionEstablish the square section by drawing, milling, broaching, forging or controlled stock.
- 04Rough machiningPrepare shoulders, center holes, bores and machining allowance.
- 05CNC featuresMachine journals, threads, grooves, cross holes, keyways and coupling interfaces.
- 06Heat treatmentApply the specified route while accounting for possible straightness and twist change.
- 07Finish machiningFinish round journals, shoulders and critical end features after thermal treatment where required.
- 08GrindingGrind functional bearing surfaces, controlled fits and the post-treatment surfaces that matter.
- 09InspectionVerify across flats, corner condition, straightness, twist, journal runout and end geometry.
- 10Protection & packingProtect machined corners, long sections and finished journals during transport.

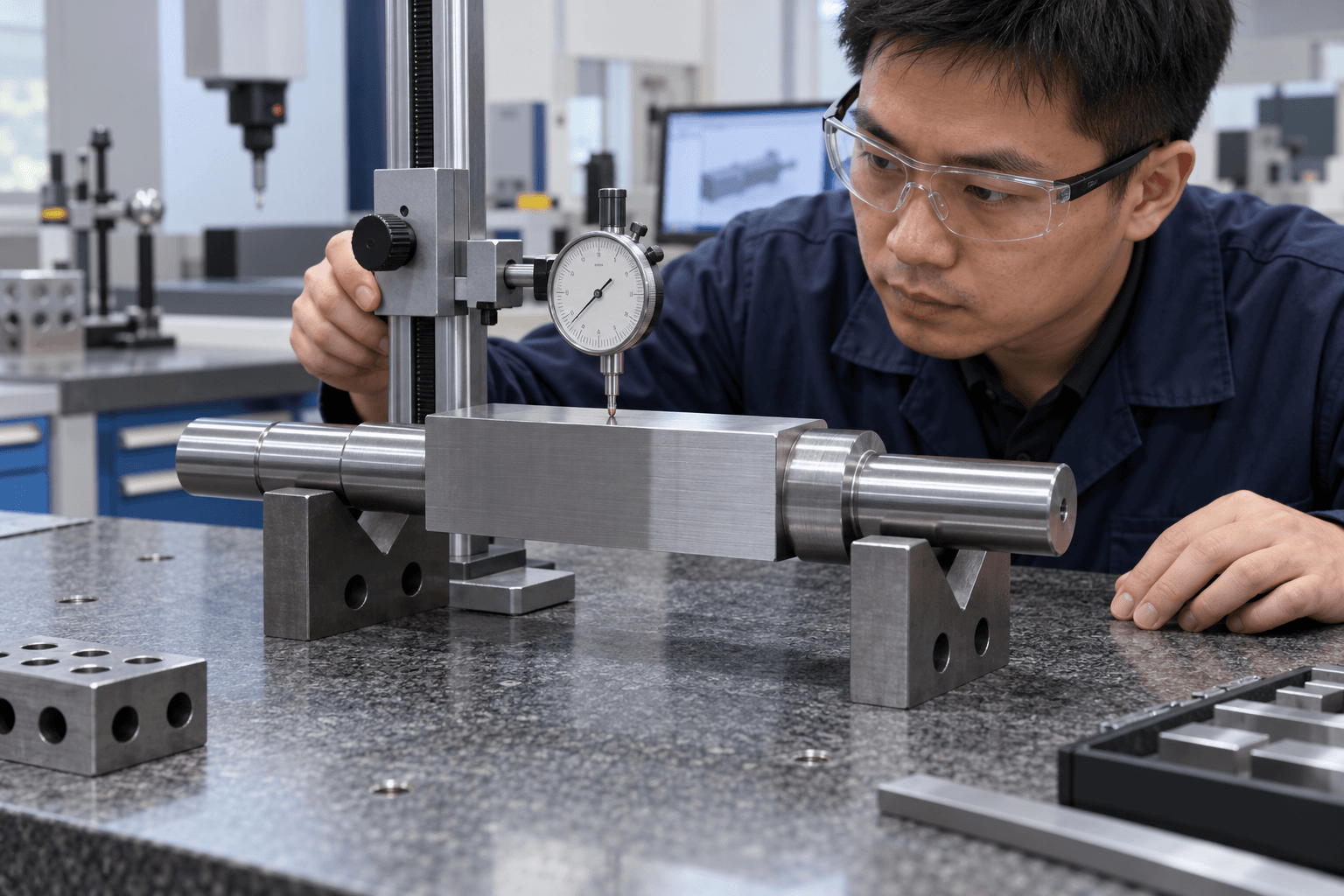

SQUARE SHAFT INSPECTION
Inspect The Profile That Meets The Mating Part.
Quality control can cover across flats, opposite-face parallelism, adjacent-face perpendicularity, corner radius or chamfer, profile length, straightness, twist, journal diameter, runout, shoulder position, hardness and surface condition.
Micrometers, profile gauges, height gauges, dial indicators, CMM or optical inspection, hardness testing and drawing-defined fixtures can be coordinated around the required CTQs.
Explore inspection & quality support β
TELESCOPING, CONVEYOR & AGRICULTURAL APPLICATIONS
Use Square Geometry Where Sliding Engagement Or Positive Drive Matters.

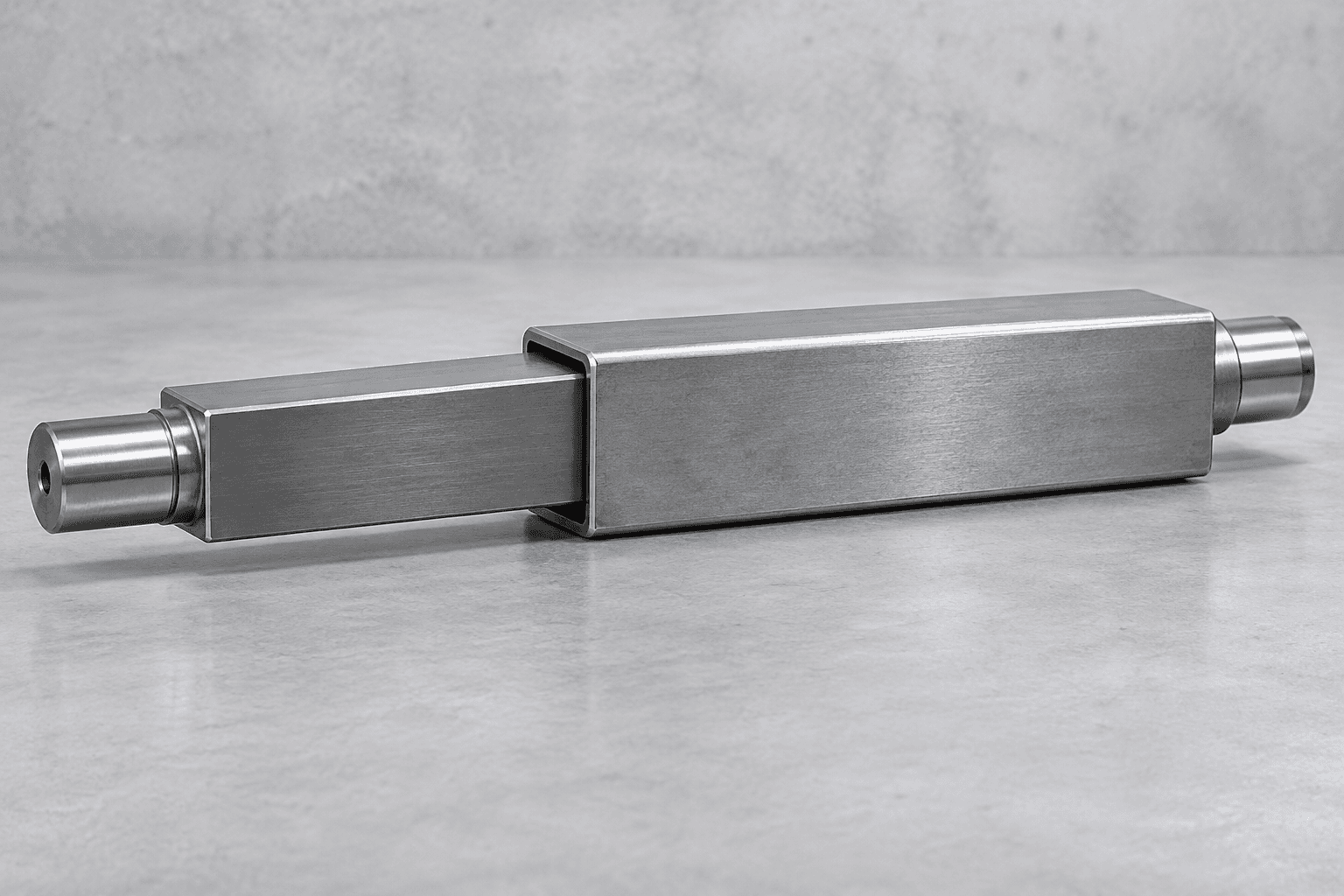

Telescoping square shafts allow an inner square profile to slide inside a matching sleeve while maintaining torque orientation. Across-flats clearance, corner clearance, straightness, twist, lubrication and engagement length need to be reviewed together.
In conveyor systems, a square center section can work with square-bore sprockets while round journals support bearings. Agricultural and PTO-related equipment can use square or rectangular profiles for sliding driveline sections, but this page does not imply complete guarded PTO assemblies.
SQUARE SHAFT APPLICATIONS
Distinctive Geometry For Industrial Power Transfer.
Conveyor systems
Square drive sections can engage square-bore sprockets with round bearing journals at the support positions.
Telescoping drives
Inner and outer square profiles can maintain torque engagement through controlled axial movement.
Agricultural equipment
Square or rectangular driveline profiles can suit application-defined sliding and torque requirements.
Explore Agriculture βIndustrial machinery
Custom square shafts can coordinate torque sections, bearing fits, machine interfaces and end features.
Couplings & actuation
Square profiles can orient mechanisms, couplers and drive elements where direct face engagement is useful.
Replacement & OEM projects
Drawing-based shafts can reproduce a profile while updating materials, hardness, finish and inspection requirements.
DESIGN FOR MANUFACTURABILITY
Make The Functional Details Explicit Before Production.
A good square-shaft drawing identifies more than a nominal profile size. It explains the mating fit, the torque path, the locations that need precision and the order in which geometry must be protected.
Across flats as a controlled fit
State the nominal across-flats size, tolerance and mating bore or sleeve information. This controls whether the shaft is free, snug or designed for a defined sliding condition.
Corner condition is functional
Specify corner radii, chamfers or relief where the mating square bore has internal corner radii. Sharp theoretical corners can cause interference even when across flats are correct.
Use a functional datum
Identify whether the square section, a round journal, a shoulder or an end face establishes the inspection relationship. This keeps square-to-round geometry aligned with the assembly.
Call out twist directly
When sprocket orientation, coupled elements or telescoping engagement matter, define twist or angular orientation over a stated length rather than relying on an implied visual condition.
Control transitions deliberately
Square-to-round transitions, shoulders, relief grooves and tool exits need enough radius and machining access to avoid local stress concentration or unfinished corners.
Harden only what needs wear resistance
Specify wear surfaces, target hardness and permitted distortion. A localized treatment may preserve machinability and final geometry better than treating every surface.
Share the load data
Torque, RPM, shock, bending load, support spacing and expected sliding cycles help determine material, section size, heat treatment and inspection priorities.
Define the mating component
A square bore, sleeve, hub or sprocket drawing reduces ambiguity around clearance, corner relief and face contact. It is especially useful for telescoping mechanisms.
The best square-shaft specification connects profile fit, corners, torque, twist, support geometry and the measurement method.
WHAT WE NEED FOR A SQUARE SHAFT QUOTE
Provide The Profile And The Operating Context.
A drawing or CAD model is the strongest starting point. It lets us review profile geometry, features, machining route and inspection requirements together.
SQUARE SHAFT FAQS
Direct Answers For Buyers And Engineers.
What is a square shaft?+
A square shaft has four functional flat faces that engage a matching square bore, sleeve or drive component to transmit torque and control angular orientation.
Why use a square shaft instead of a round shaft?+
Direct face contact can transmit torque without relying on a separate key, spline or clamp. The right choice still depends on torque, fit, length, load and mating geometry.
What does across flats mean?+
Across flats is the distance between opposite parallel faces. It is normally the primary dimension that controls fit with a square bore or sliding sleeve.
Can square shafts have round bearing journals?+
Yes. A custom square-to-round shaft often combines a square torque-transmission section with round journals so conventional bearings can support the assembly.
Can Topshaft manufacture rectangular shafts?+
Yes. Rectangular and other non-round drawing-defined profiles can be reviewed alongside square-section shafts.
Can square shafts be hardened?+
Yes. The material and required wear locations determine whether Q&T, induction hardening, carburizing, through hardening or another route is suitable.
Can square shafts telescope?+
Yes. An inner square section can slide in a matching outer sleeve when across-flats clearance, corner clearance, straightness, twist, lubrication and engagement length are defined.
How is square-shaft twist controlled?+
Twist is reviewed as angular orientation along the length. The manufacturing route, material condition, heat treatment, handling and inspection plan all matter.
Can square shafts include threads, grooves or cross holes?+
Yes. Threads, tapped holes, retaining-ring grooves, cross holes, keyways and machined coupling ends can be incorporated where technically feasible.
What is needed for a square shaft quote?+
Send a drawing or CAD model with across flats, length, profile length, corner condition, straightness, twist, journals, end features, material, heat treatment, quantity and operating data.
NEED A CUSTOM SQUARE SHAFT?
Review Torque, Fit, Twist And Bearing Support As One System.
Share the drawing, mating-part information and operating requirements. Topshaft can review custom square, rectangular and square-to-round shafts around the complete manufacturing and inspection route.
