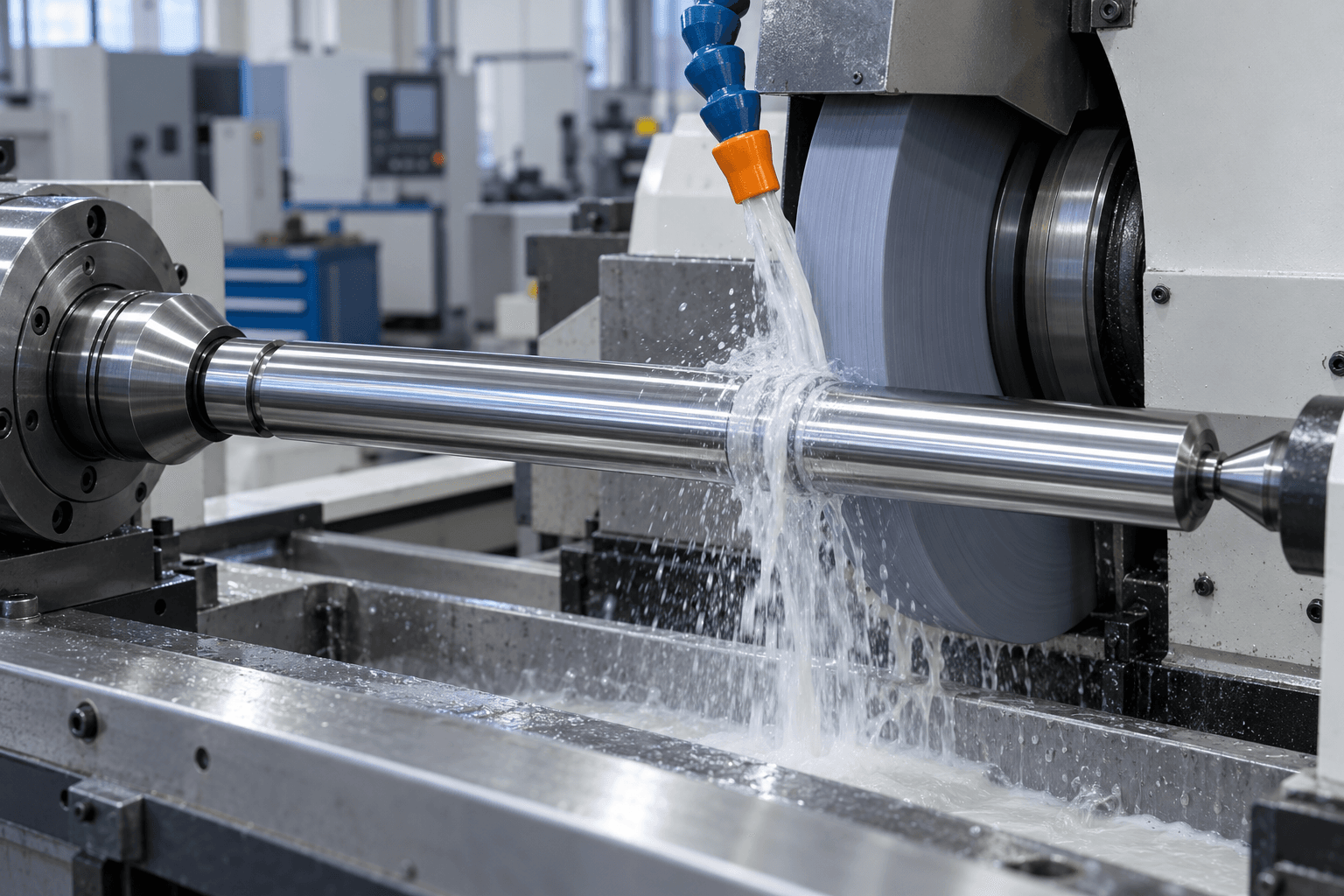

Precision ground
Controlled OD, roundness, cylindricity and functional surface for bearing, bushing and guide contact.
CUSTOM PRECISION SHAFT ROD MANUFACTURER
Straight Geometry.
Controlled Surface.
Reliable Motion.

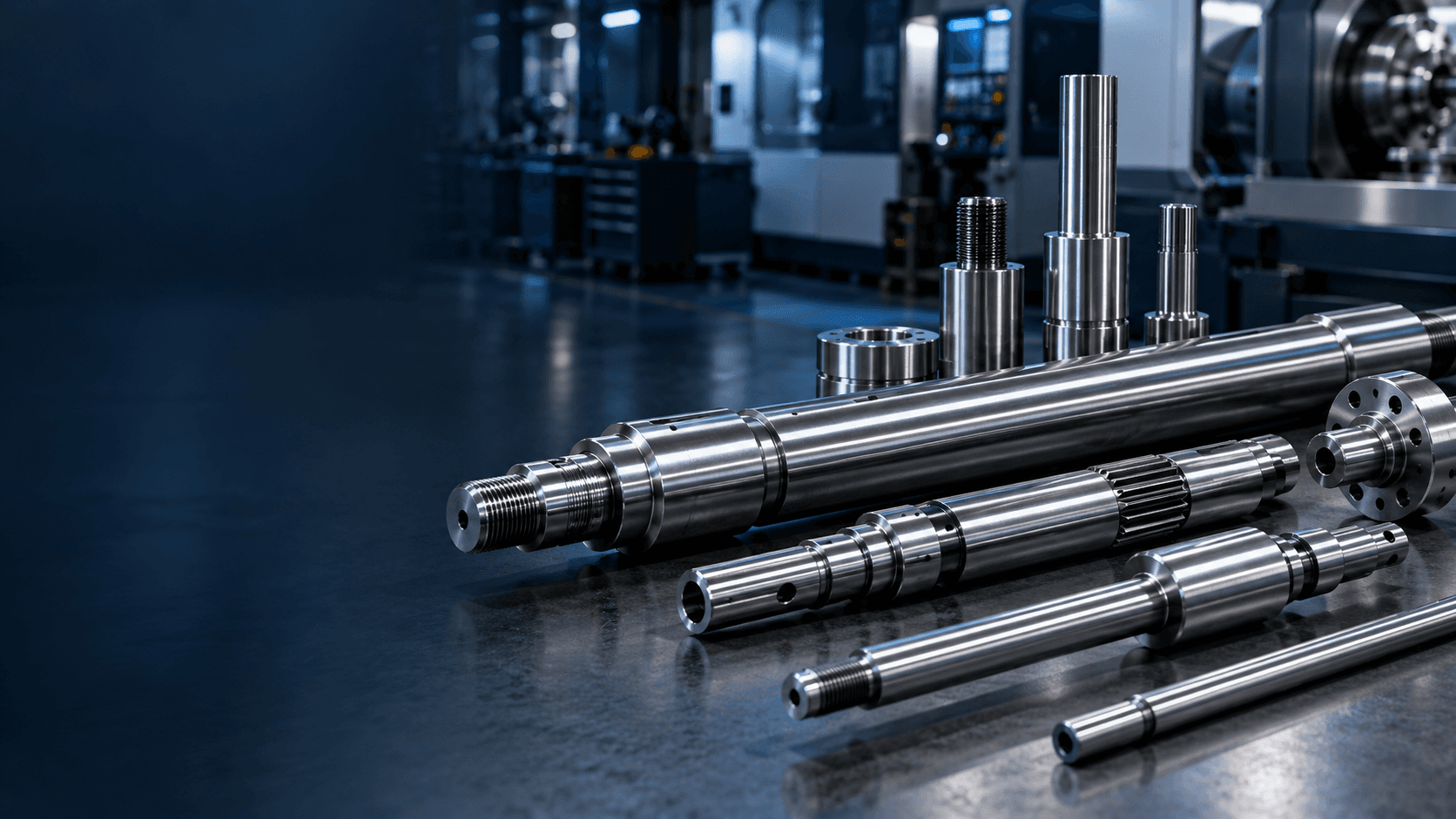

Custom precision shaft rods and ground shafting built around the features that run.
Topshaft manufactures precision shaft rods, rod shafts and precision ground shafting for rotary motion, linear motion, automation, industrial machinery, bearing systems and OEM assemblies.
Diameter tolerance, straightness, roundness, cylindricity, hardness, surface finish and drawing-defined end geometry are reviewed as one functional system.
STEP, STP, IGES, X_T, DWG, DXF and PDF drawings can be reviewed.PRECISION SHAFT ROD MANUFACTURING AT A GLANCE
Control The Functional Surface, Not Just The Diameter.
Actual achievable tolerance, straightness, hardness and finish depend on material, diameter, shaft length, heat-treatment route, feature geometry and production quantity.
- Product type
- Precision shaft rods / rod shafts / ground shafting
- Geometry
- Straight cylindrical, stepped ends or drawing-defined hollow design
- Materials
- Carbon steel, alloy steel, stainless steel, aluminum and specified materials
- Surface
- Turned, ground, fine-ground, polished or drawing-defined
- Hardness
- Untreated, through hardened, induction hardened or project-defined
- End features
- Chamfers, threads, tapped holes, flats, grooves, cross holes and journals
- Critical geometry
- Diameter, straightness, roundness, cylindricity and roughness
- Functional interfaces
- Bearings, bushings, linear bearings, guides, clamps and couplings
- Production
- Prototype, cut-to-length batch and repeat OEM production
- Inspection
- Dimensional, straightness, hardness, roughness and drawing-defined inspection
WHAT IS A PRECISION SHAFT ROD?
A Finished Mechanical Component, Not Simply Round Bar.
A precision shaft rod is a straight cylindrical shaft manufactured with controlled outside diameter, straightness, roundness and surface condition for use in mechanical assemblies. It can be a simple cut-to-length part or include chamfers, threads, tapped holes, grooves, flats, cross holes, shoulders and reduced journal ends.
Unlike ordinary commercial round bar, precision shafting is intended to function directly with bearings, bushings, linear guides, clamps, couplings and motion systems.
GROUND, HARDENED OR TURNED β DEFINE THE FUNCTION FIRST
Choose The Manufacturing Route Around The Mating Component.
Grinding is useful where fit, form or surface requirements exceed what turning alone can economically provide. Hardening is useful where continuous sliding or rolling contact calls for wear resistance.
Hardened
Surface wear resistance for sliding guides, rollers, bushings and repeated mechanical contact.
Turned
An efficient route when turning already achieves the required diameter, fit and roughness.
Post-treatment grinding
Establish the final functional diameter after hardening or another thermal route.
Functional tolerance
Allocate tight control to bearing and guide surfaces rather than applying it everywhere.
Simple modifications
Add threads, chamfers, tapped holes, flats, cross holes and grooves to the drawing.
Diameter + straightness + roundness / cylindricity + hardness + surface finish + end features β reliable fit and motion.
ENGINEERING COMPARISONS
Separate The Requirements That Control Function.
A shaft can meet its diameter tolerance without automatically meeting straightness, roundness, cylindricity or runout requirements.
CharacteristicWhat it controlsWhy it matters
Diameter toleranceShaft sizeBearing fits, bushings, clamps and coupling interfaces.
RoundnessIndividual cross-section formUniform rolling or sliding contact.
CylindricityComplete cylindrical formTotal geometry along a functional surface.
StraightnessShaft line or axisAlignment, smooth travel, installation and long-span behavior.
RunoutRotation relative to a datumVibration and functional rotation.
MATERIAL & END-FEATURE OPTIONS
Make The Shaft Rod Specific To Its Assembly.
Carbon & alloy steel
1045 / C45 or 4140 / 42CrMo directions can balance strength, machinability and heat-treatment response.
Stainless steel
303, 304, 316, 420 and 17-4PH have different corrosion, strength, wear and machinability characteristics.
Aluminum
A lightweight route for instrumentation and lower-load automation where high surface hardness is not central.
End features
Define thread standard, tapped holes, chamfers, flats, cross holes, grooves, reliefs and reduced journal diameters.
STRAIGHTNESS & DEFLECTION
Manufactured Straightness Is Not Operating Deflection.
A long shaft can be made straight yet bend elastically under operational load. Shaft diameter, unsupported length, material stiffness, loading and support positions all need review.
Long, slender shaft rods require particular attention to machining, straightening, handling, packaging and installation. Review manufactured straightness together with the supported application, not as an isolated number.
Bearing and bushing alignment
Long-span guide-shaft behavior
Surface finish matched to the mating component
Final dimensions before or after coating
FROM MATERIAL TO FINISHED SHAFT ROD
Plan The Whole Precision Route.
The correct sequence is defined by the drawing: material condition, length-to-diameter ratio, thermal route, final geometry, surface finish and inspection plan.
- 01Material reviewConfirm grade, material condition, diameter and required final hardness.
- 02Cut to lengthPrepare finished length and the processing allowance.
- 03Initial machiningPrepare the blank and control straightness for the route.
- 04CNC turningMachine journals, shoulders, chamfers, threads and grooves.
- 05Heat treatmentUse hardening, induction hardening or the specified thermal route.
- 06GrindingEstablish functional outside diameter and surface after treatment where needed.
- 07PolishingLower roughness where the mating component requires it.
- 08Secondary featuresAdd flats, cross holes, tapped holes and grooves to the drawing.
- 09Final inspectionVerify OD, length, straightness, surface, hardness and end features.
- 10Protection & packingProtect long shafts against damage or bending in transport.
QUALITY CONTROL FOR PRECISION SHAFTING
Inspect The Surface That Actually Works.

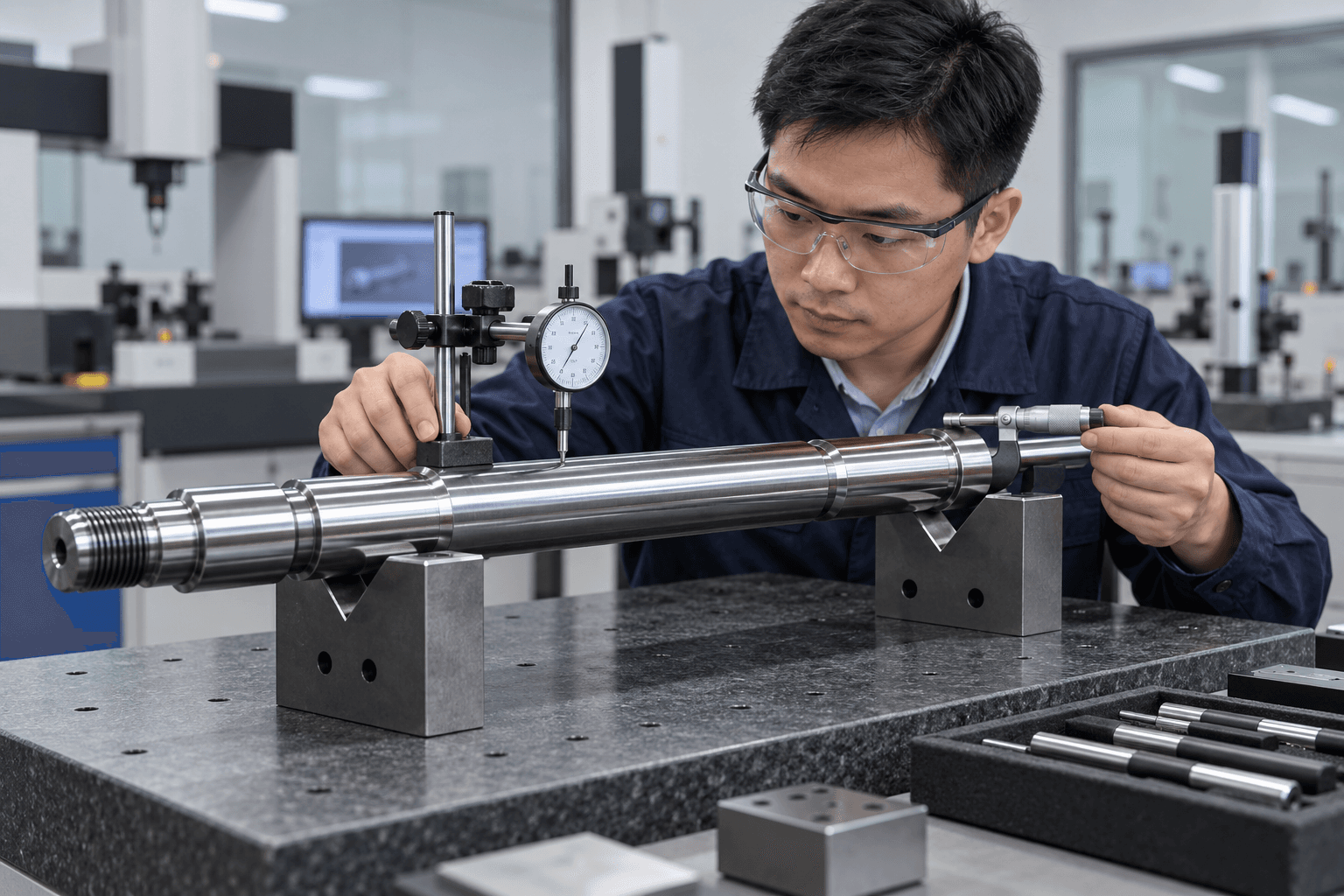

Inspection can be organized around outside diameter, diameter consistency, straightness, roundness, cylindricity, overall length, surface roughness, hardness, hardened depth, end-feature geometry and visual surface condition.
Depending on the drawing, measurement can use micrometers, gauges, dial indicators, straightness fixtures, CMM or optical inspection, surface-roughness testing and hardness testing.
Explore inspection & quality support β
PRECISION SHAFT ROD APPLICATIONS
One Straight Shaft Category. Many Mechanical Functions.
Automation equipment
Guide shafts, support rods, machine axes and positioning members where straightness, diameter consistency and surface finish matter.
Linear motion systems
Ground shaft rods can support linear bearings, bushings, slides and guide mechanisms.
Explore Linear Motion Shafts βIndustrial machinery
Rotating support shafts, guide shafts, assembly rods, mechanism shafts and machine frames.
Bearing & bushing systems
Controlled mating surfaces for plain bushings, ball bushings, sleeve bearings and support bearings.
Packaging & printing
Long precision shafting for packaging lines, printing machinery, converting equipment and positioning systems.
Medical & laboratory
Smaller precision shaft rods for automation, diagnostic equipment and instrument mechanisms.
WHAT WE NEED FOR A SHAFT ROD QUOTE
Start With The Functional Requirements.
Send a drawing or CAD model whenever possible so geometry, process route and inspection can be reviewed together.
PRECISION SHAFT ROD FAQS
Questions Buyers And Engineers Ask.
What is a shaft rod?+
A shaft rod is a straight cylindrical shaft manufactured with controlled diameter, straightness and surface condition for rotary, linear-motion, guide or mechanical-support applications.
What is the difference between a shaft rod and round bar?+
Round bar is primarily raw material. A precision shaft rod is intended to function as a machine component and can include controlled OD, straightness, hardness, surface finish and custom end features.
What is precision ground shafting?+
It is straight shaft material finished through grinding to improve dimensional consistency, geometry and surface condition.
Which materials are used for shaft rods?+
Carbon steel, alloy steel, stainless steel and aluminum can all be considered. The right choice depends on load, wear, corrosion, hardness and environment.
Can shaft rods be hardened?+
Yes. Depending on material and application, shaft rods can be through hardened, case hardened, induction hardened or processed to another specified thermal route.
Why is straightness important?+
Straightness influences bearing alignment, sliding movement, friction, vibration, runout and installation, especially on long precision shafts.
Can shaft rods have threaded ends, flats or cross holes?+
Yes. External threads, tapped end holes, flats, cross holes, grooves and other secondary features can be incorporated where technically feasible.
What should I send for a quote?+
Provide the drawing or CAD model, diameter, length, material, quantity, tolerance, straightness, hardness, surface finish and any custom end-feature requirements.
NEED CUSTOM PRECISION SHAFT RODS?
Review Material, Diameter, Straightness And Surface As One System.
Whether you need a simple cut-to-length ground rod or a customized shaft with threads, grooves, flats, holes or machined end journals, Topshaft can review the complete manufacturing route around your application.
