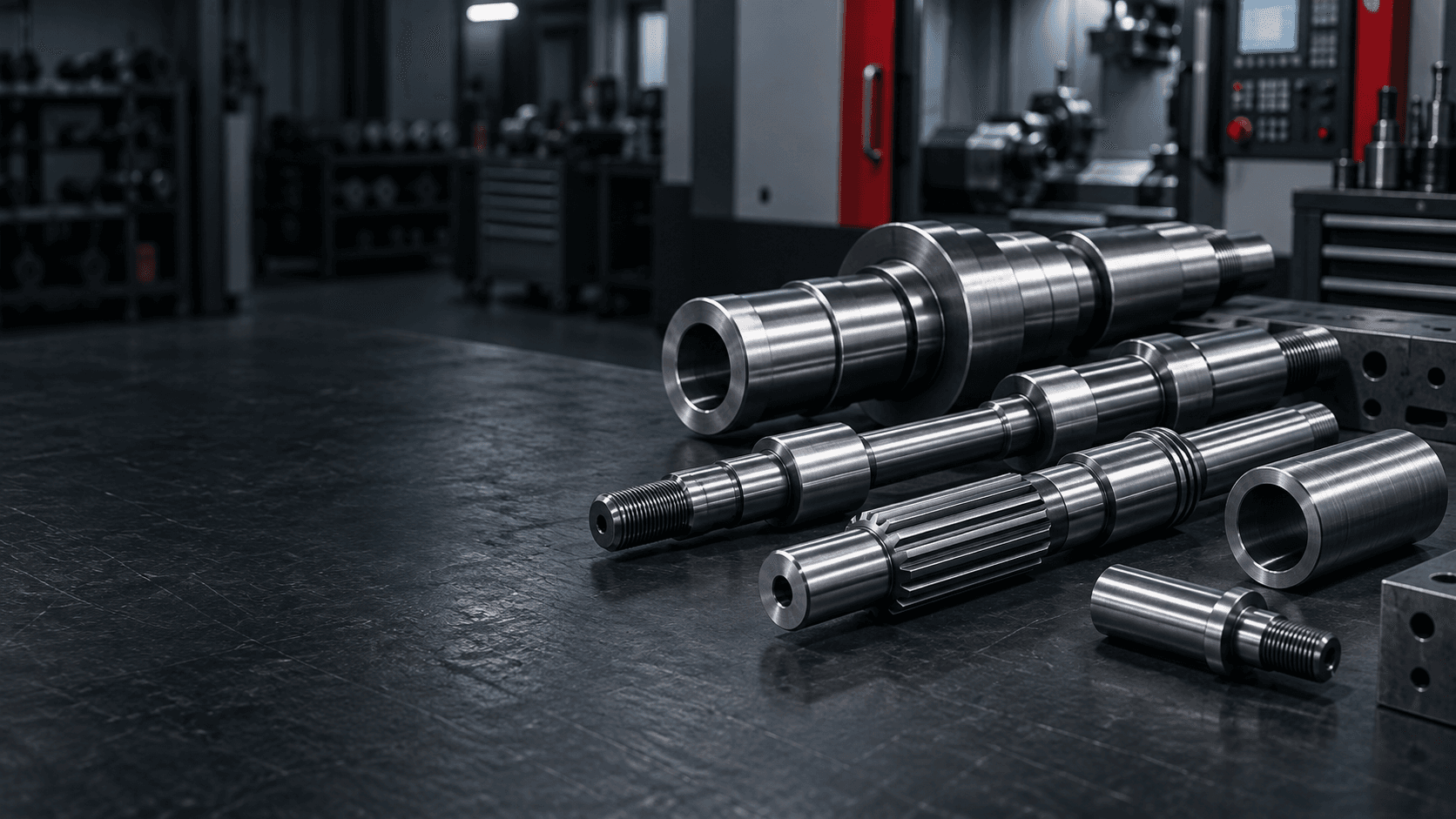

Custom precision shafts manufactured for industrial applications

MADE-TO-DRAWING SHAFT MANUFACTURING

Custom Shaft
Manufacturer

Precision custom shafts manufactured to your drawings.

Topshaft manufactures custom precision shafts for motors, gearboxes, automation systems, industrial machinery, automotive equipment and power transmission applications.From straight shafts to stepped, splined, threaded, hollow and multi-feature parts, we work from your 2D drawings, 3D models, samples and technical specifications.
Upload Your Drawing →Request a Custom Shaft Quote →
STEP, STP, IGES, X_T, DWG, DXF and PDF drawings accepted.

AT A GLANCE

Custom Shaft Manufacturing Capabilities

Technical requirements are reviewed against your drawing and application before the manufacturing route is confirmed.
Manufacturing type
Custom / OEM / made-to-drawing
Shaft types
Straight, stepped, motor, gear, spline, hollow, drive and threaded
Processes
Turning, milling, grinding and secondary machining as required
Materials
Carbon steel, alloy steel, stainless steel, aluminum, brass and other specified materials
Critical features
Journals, shoulders, threads, splines, keyways, grooves, tapers and holes
Production
Prototype, low-volume and repeat production
Inspection
Dimensional, runout, surface and project-specific checks
Finishing
Specified surface treatment and protection requirements

ENGINEERING OVERVIEW

What is a custom shaft?

A custom shaft is manufactured according to a specific drawing, assembly requirement or operating condition rather than standard off-the-shelf dimensions.

Its diameter, length, material, hardness, bearing fits, threads, keyways, splines, grooves, surface finish and geometric tolerances can be engineered around the final application.

For rotating assemblies, bearing journal accuracy, runout, concentricity, straightness and surface roughness can directly affect vibration, bearing life, sealing performance and power transmission.

Custom machined shaft with precision features
Designed around functional requirements, not only the external shape.

DESIGNED FOR FUNCTION

What shaft features can we machine?

01

Bearing journals

Controlled surfaces for bearings, bushings and seals.
02

Stepped diameters

Shoulders for bearings, gears, spacers and couplings.
03

Keyways

Torque-transmitting interfaces for hubs, gears and pulleys.
04

Splines

Rotational engagement where high torque transfer is required.
05

Threads

Metric, imperial or drawing-specified end and bore threads.
06

Grooves

Retaining-ring, seal, relief and application-specific grooves.
07

Cross & axial holes

Drilled, tapped and bored features for the assembly.
08

Flats & tapers

Locating, clamping and positioning interfaces.
09

Hollow sections

Weight reduction or internal routing where the design requires it.

PRODUCT FAMILY

Custom shaft types we manufacture

Explore shaft families by their application, geometry and torque-transfer requirements.

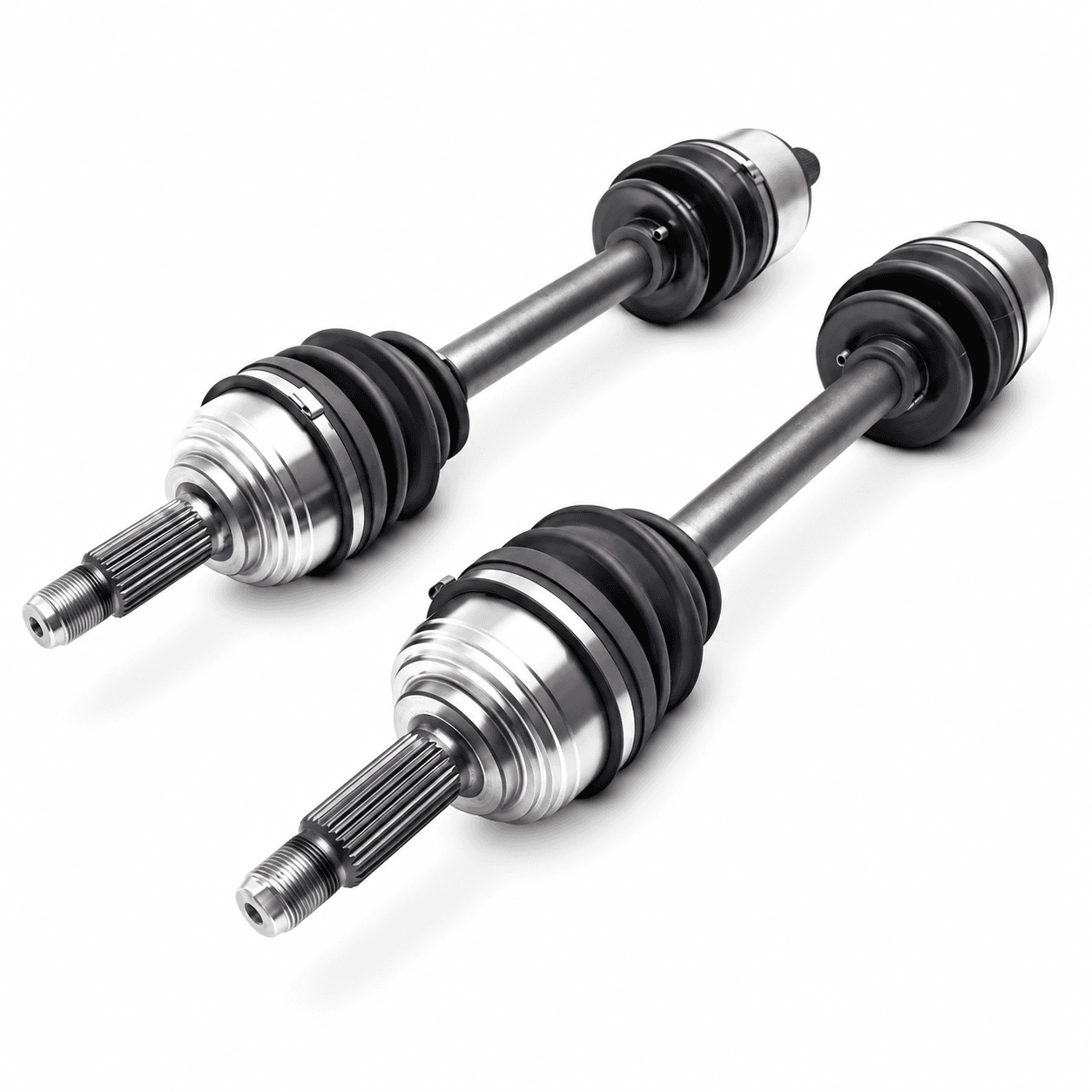

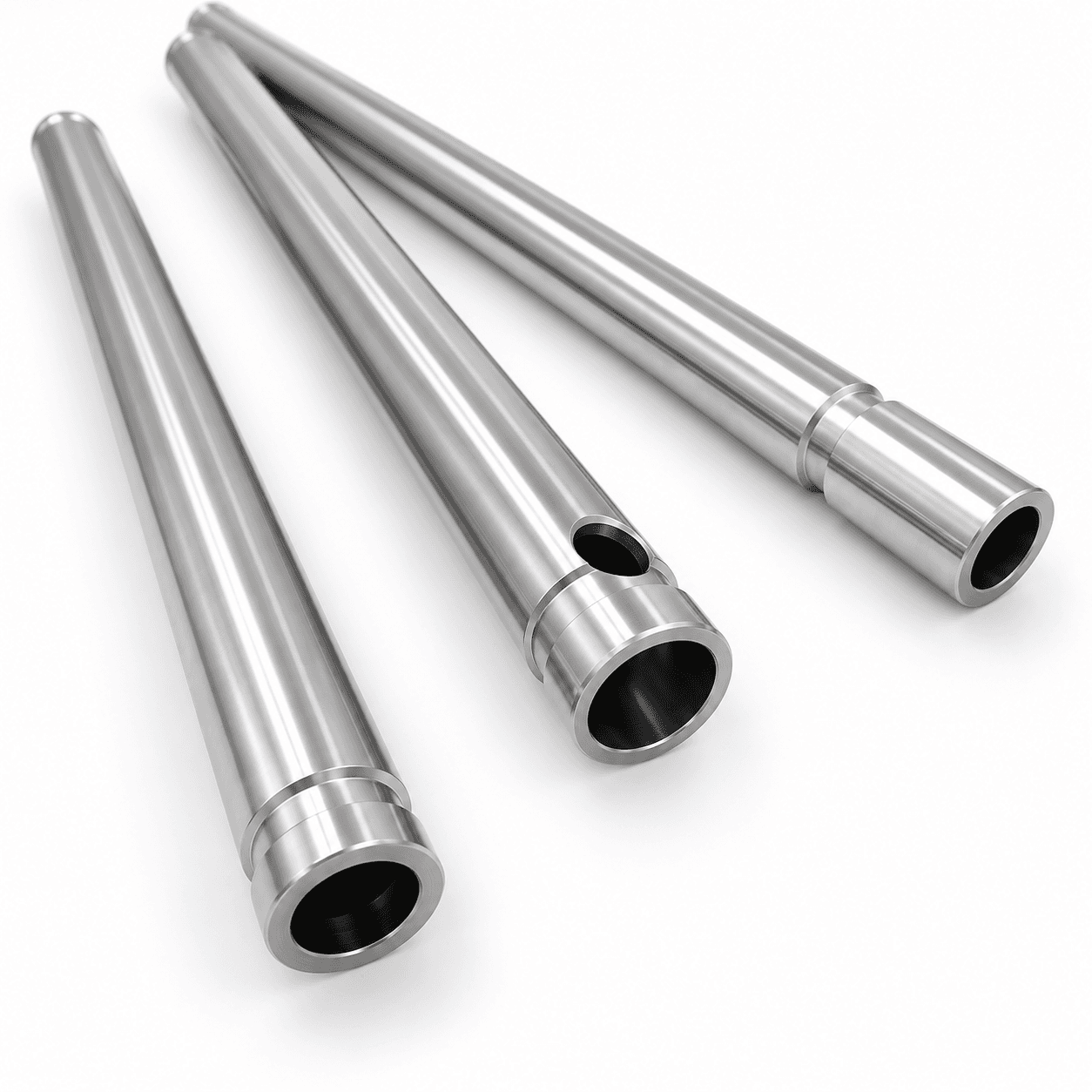

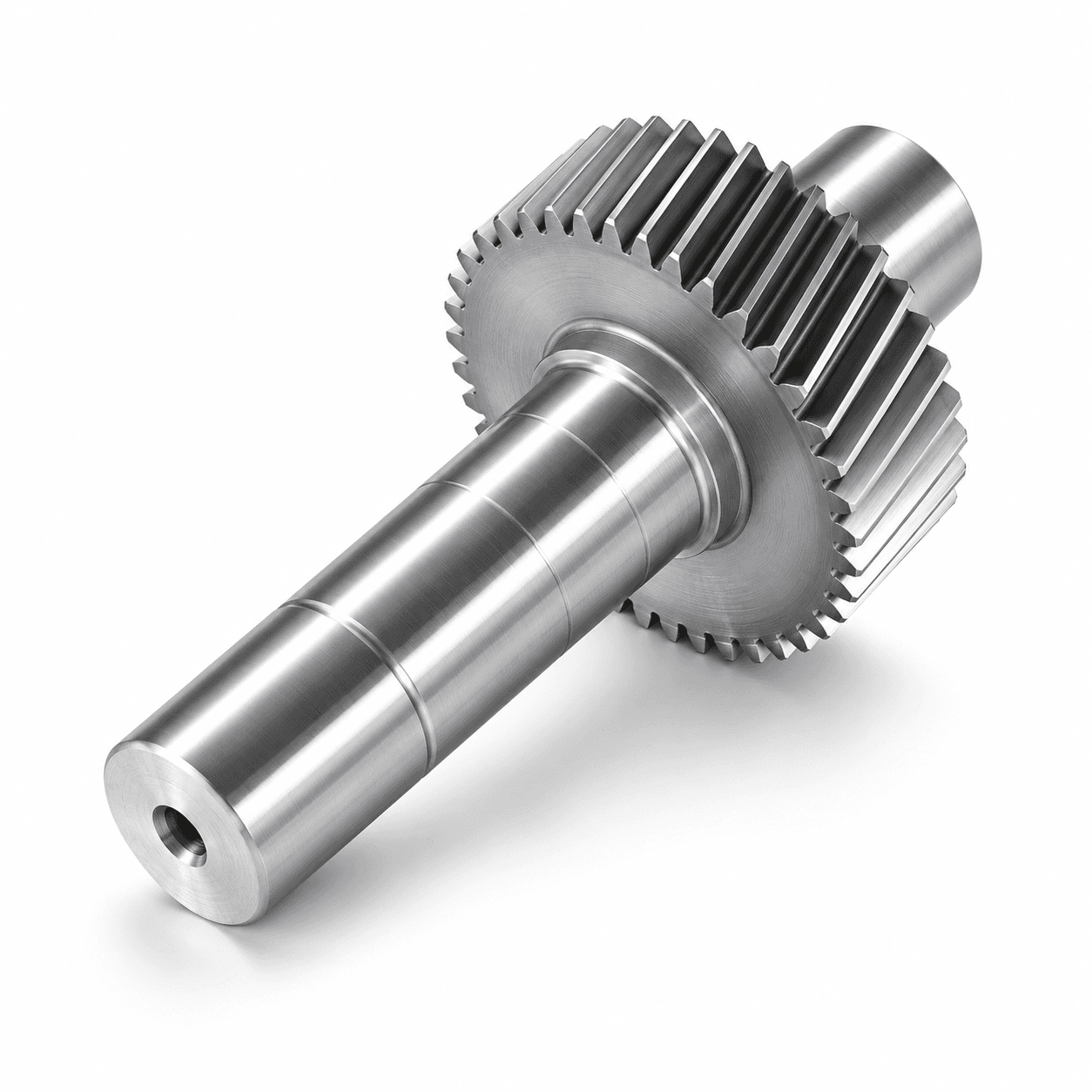

Motor shaftsMotor shafts→Gear shaftsGear shafts→Helical gear shaftsHelical gear shafts→Spline shaftsSpline shafts→Hollow shaftsHollow shafts→Drive shaftsDrive shafts→Transmission shaftsTransmission shafts→Stepped shaftsStepped shafts→CamshaftsCamshafts→CrankshaftsCrankshafts→Eccentric shaftsEccentric shafts→Roller shaftsRoller shafts→Spindle shaftsSpindle shafts→Linear motion shaftsLinear motion shafts→Threaded shaftsThreaded shafts→Worm shaftsWorm shafts→

MANUFACTURING ROUTE

Custom shaft manufacturing capabilities

Process selection depends on geometry, material, tolerance, hardness and required quantity.
CNC turningFor shaft diameters, shoulders, tapers, grooves and threaded sections.
Swiss-type turningFor smaller-diameter and long, slender precision components.
CNC millingFor keyways, flats, slots, holes and other non-rotational details.
Turn-mill machiningFor coordinated rotary and milled features in fewer setups.
Precision grindingFor critical journals, seal surfaces and precision diameters as required.
Secondary machiningFor project-specific operations that complete the drawing requirement.

MATERIALS

Materials for custom shaft manufacturing

Material selection depends on torque, load, hardness, fatigue, wear, corrosion resistance, operating temperature and cost.

Carbon steel

General machinery, rollers and drive shafts

Alloy steel

High-load shafts and transmission components

Stainless steel

Corrosive, food and industrial environments

Aluminum

Lightweight rotating assemblies

Brass & copper

Low-friction, corrosion-resistant or specialist components

Titanium & nickel alloys

High-strength, high-temperature applications

Engineering plastics

Application-dependent low-friction or electrical uses
Precision shaft inspection and export packaging

DIMENSIONAL CONTROL

Custom shaft tolerances and quality control

Shaft performance relies on the relationship between multiple dimensions and geometric characteristics. Inspection focuses on the features that influence assembly and rotational performance.
  • Shaft and bearing journal diameter
  • Runout, concentricity and coaxiality
  • Straightness, roundness and cylindricity
  • Shoulder location, threads, keyways and surface roughness
  • Hardness and overall shaft length
Actual achievable tolerance depends on material, diameter, length, heat treatment, shaft geometry and inspection datum.

POST-MACHINING REQUIREMENTS

Heat treatment and surface finishing

Mechanical properties, wear resistance and corrosion performance are reviewed around the selected material and drawing requirements.

Heat treatment

Quenching and tempering, induction hardening, carburizing, nitriding, age hardening and stress relief can be evaluated when specified for the project.

Surface finishing

Black oxide, plating, passivation, anodizing, polishing, grinding and application-specific protection can be incorporated according to the agreed requirement.

APPLICATION CONTEXT

Custom shafts for different industries

Industrial machinery

Drive, spindle, transmission and roller shafts for production equipment.

Electric motors

Rotor, motor and stepped shafts requiring controlled bearing fits.

Automotive & transportation

Transmission, drive and mechanical shafts for vehicle systems.

Robotics & automation

Precision shafts for actuators, servo systems and motion control.

Gearboxes & power transmission

Gear, spline, worm and transmission shafts for torque transfer.

Pumps & fluid equipment

Motor and drive shafts with bearing and sealing surfaces.

Material handling

Roller and drive shafts for conveyors and packaging machinery.

Medical & precision equipment

Small, high-precision components made to controlled requirements.

FROM DRAWING TO DELIVERY

How we manufacture your custom shaft

A controlled process keeps the discussion focused on the characteristics that matter to the final assembly.
  1. 01

    Drawing review

    We review dimensions, tolerances, material, surface finish and expected quantity.
  2. 02

    Process planning

    The route is selected around geometry, material, functional relationships and production needs.
  3. 03

    Material preparation

    Specified material and documentation requirements are confirmed before machining.
  4. 04

    CNC machining

    Primary shaft geometry and functional features are machined to the approved process.
  5. 05

    Heat treatment

    Where specified, the required treatment is incorporated into the controlled route.
  6. 06

    Finish machining

    Critical journals and precision surfaces can be finish-machined or ground as required.
  7. 07

    Inspection

    Critical dimensions, runout, concentricity and surface requirements are checked against the drawing.
  8. 08

    Protection & packing

    Parts are cleaned, protected and packaged for the agreed handling and transportation needs.

WHY TOPSHAFT

A shaft
manufacturing partner
for your
drawing-based project.

Dedicated shaft knowledge

Our focus is the relationship between shaft geometry, bearing fits, runout, surface finish and assembly performance.

Multiple manufacturing processes

Turning, milling, grinding and secondary machining are coordinated around the component requirement.

Prototype to production

Projects can move from engineering samples to low-volume and repeat production.

Made to your drawing

Components are manufactured from drawings, CAD models, samples and technical requirements.

Precision inspection

Critical dimensions and geometric tolerances are checked to the project requirements.

Engineering support

Manufacturing feasibility, tolerance requirements and machining strategy can be reviewed before production.

PREPARE YOUR RFQ

What information do we need for a custom shaft quotation?

Send the information that allows a useful technical evaluation before quotation.
  1. 012D drawing or 3D model
  2. 02Material specification
  3. 03Required quantity
  4. 04Dimensional tolerances
  5. 05Runout or concentricity requirements
  6. 06Surface roughness requirements
  7. 07Heat treatment and hardness
  8. 08Surface treatment
  9. 09Annual estimated volume
  10. 10Inspection or documentation requirements
Send Your Shaft Drawing for Review →

BUYER QUESTIONS

Custom shaft FAQs

Clear technical answers for your sourcing and engineering review.
What is a custom shaft?+

A custom shaft is manufactured to specified dimensions, material, tolerances and functional requirements rather than standard catalogue dimensions. Bearing journals, keyways, splines, threads, grooves and stepped diameters can be engineered for the final assembly.

What information is required to manufacture a custom shaft?+

A 2D drawing or 3D CAD model is preferred. Please identify material, dimensions, tolerances, surface finish, heat treatment, hardness and other critical requirements. A sample can also support manufacturing evaluation.

What materials can be used for custom shafts?+

Common options include carbon steel, alloy steel, stainless steel, aluminum, brass, copper, titanium and engineering plastics. Selection depends on strength, fatigue, wear, corrosion, temperature and cost requirements.

How are tight-tolerance shaft diameters manufactured?+

Precision diameters are normally produced by CNC turning followed by finish turning or grinding when tighter bearing fits, roundness or surface roughness are required.

Can Topshaft manufacture shafts with keyways, splines and threads?+

Yes. Custom shafts can incorporate keyways, splines, threads, grooves, flats, shoulders, cross holes and other application-specific features according to the engineering drawing.

Can custom shafts be heat treated?+

When specified for the selected material and application, the manufacturing route can include the required heat treatment and follow-up finish machining.

Can Topshaft manufacture prototype shafts?+

Yes. Projects can begin with prototypes or first-article samples before moving into low-volume or repeat production.

How do you control shaft runout and concentricity?+

These characteristics are controlled through datum selection, machining sequence, workholding, finish machining or grinding, and inspection against the drawing requirements.

READY TO START?

Need a custom shaft manufactured to your drawing?

Whether you need a prototype, a replacement component or ongoing production, send your 2D drawing, 3D model or shaft sample for manufacturing review.
Request a Custom Shaft Quote →Upload Your Drawing →
